CCS Turbo Diffuser Turbo Replacement Parts Radial Flow Turbine Type

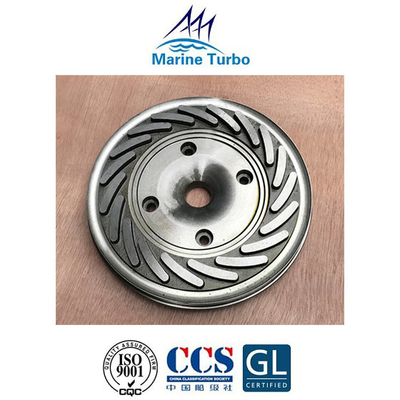

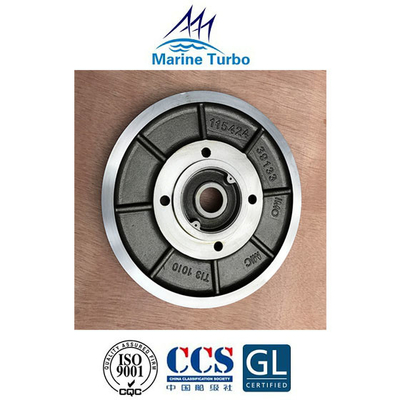

Large Image : CCS Turbo Diffuser Turbo Replacement Parts Radial Flow Turbine Type

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Marine Turbo
Certification:	ISO; CCS; GL
Model Number:	T- TCR12

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Packaging Details:	Carton box, wood case
Delivery Time:	1-4 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	500 pcs / month

Contact Now

Detailed Product Description

Model:	T- TCR12 Turbo Diffuser	Engine Type:	Diesel, Biofuel And Gas Engines
Turbine Type:	Radial Flow	Two Stroke:	T- TCR18, T- TCR20, T- TCR22
Four Stroke:	T- TCR10, T- TCR12, T- TCR14, T- TCR16	Certification:	ISO9001, CCS, Or GL
Application:	Marine Propulsion, Excavators, Locomotives, Power Generation, Off-road Vehicles, Machanical Drive, Mining, Marine Gensets	Package:	Wood Case, Carton Box Or According To Require
Highlight:	turbo replacement parts , turbo spare parts

CCS Turbo Diffuser Turbo Replacement Parts Radial Flow Turbine Type

T- MAN / T- TCR series marine turbocharger's design features:

T- TCR12 Turbocharger Diffuser belongs to T- MAN / T- TCR series exhaust gas turbocharger and which was disigned to meet the growing demands for high turbocharging two-stroke, four-stroke diesel engines and gas engines.

Increase of the compressor pressure ratio;Low noise emissions

Simple installation to the engine,wide application: Marine propulsion, excavators, locomotives, power generation, off-road vehicles, machanical drive, mining, marine gensets.

T-TCR series Marine turbocharger dimension and weight only for reference:

T- MAN	T- TCR Series	L (mm)	H (mm)	W (mm)	Weight (kg)
	T- TCR10	860	410	327	48
	T- TCR12	889	496	401	78
	T- TCR14	950	623	534	108
	T- TCR16	1,091	658	590	175
	T- TCR18	1,311	870	730	306
	T- TCR20	1,662	970	852	504
	T- TCR22	1,990	1,320	1,068	1,044

CCS Turbo Diffuser Turbo Replacement Parts Radial Flow Turbine Type

T- TCR12 marine turbocharger diffuser function:

The engine exhaust gas expands through a nozzle ring where the pressure energy of the gas is converted to kinetic energy. This high velocity gas is directed onto the turbine blades where it drives the turbine wheel, and thus the compressor at high speeds (10 -15000 rpm). The exhaust gas then passes through the outlet casing to the exhaust uptakes.

The diffuser is mounted in the compressor side of the turbocharger in order to direct the air smoothly into volute casing and Convert kinetic energy to pressure energy inlet air.
